Illustration V2 Desk Series
Illustration V2 Desk
Futuristic, interlocking leg supports rise to a 500+ square inch desktop, with room for books and laptop. The Illustration V2 desk is height-adjustable, with a wide frame design that offers extra leg room in any grade. Optional casters, glides, bookbox, modesty panel and backpack hook.
Key Features & Accessories
Unitized Frame
Held together by steel tubing (and not by the bookbox), the Illustration V2 desk is more than just elegant and modern - it is very strong.
Modesty Panel
Students can sit comfortably with the optional Modesty Panel.
Backpack Hook
Safety first. Avoid students tripping over their backpacks by adding backpack hooks to the desk. The backpack hook is securely attached to the unitized frame and not the desktop.
Caster Compatibility
The Illustration V2 desk comes standard with adjustable screw-in glides. Want to go mobile? This desk is compatible with our 3" heavy duty casters.
Adjustable or Fixed Leg Heights
Select adjustable or fixed height versions according to the needs of your classroom.
Limitless Possibilities
Modern and sleek, don't compromise style over strength. Customize your V2 Desk, many options and variations to choose from. Explore the collection.
Explore all of the color possibilities in our 2024 catalog
Download the catalog

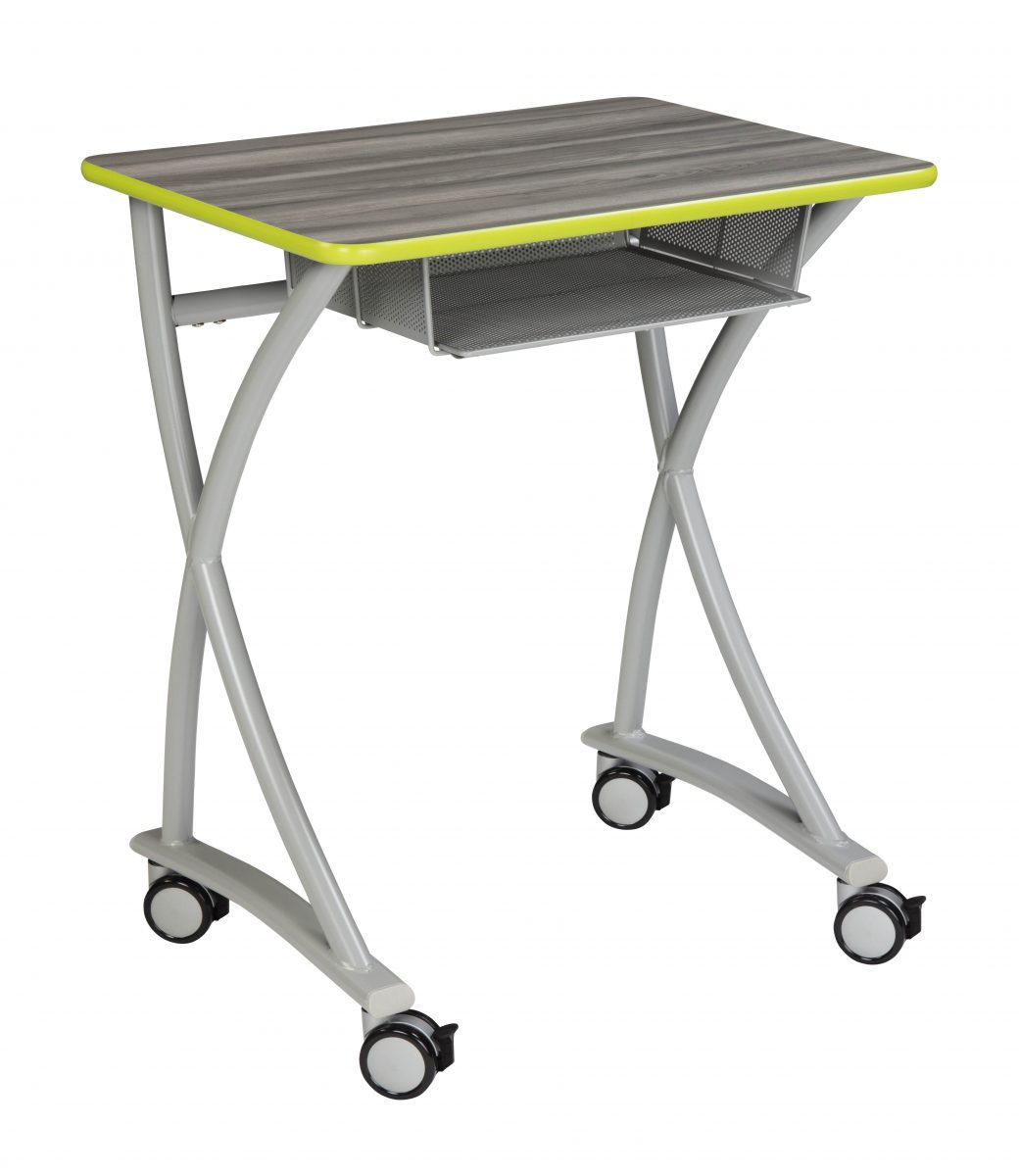

Academia 20230220 239 2726 Mbb Gn

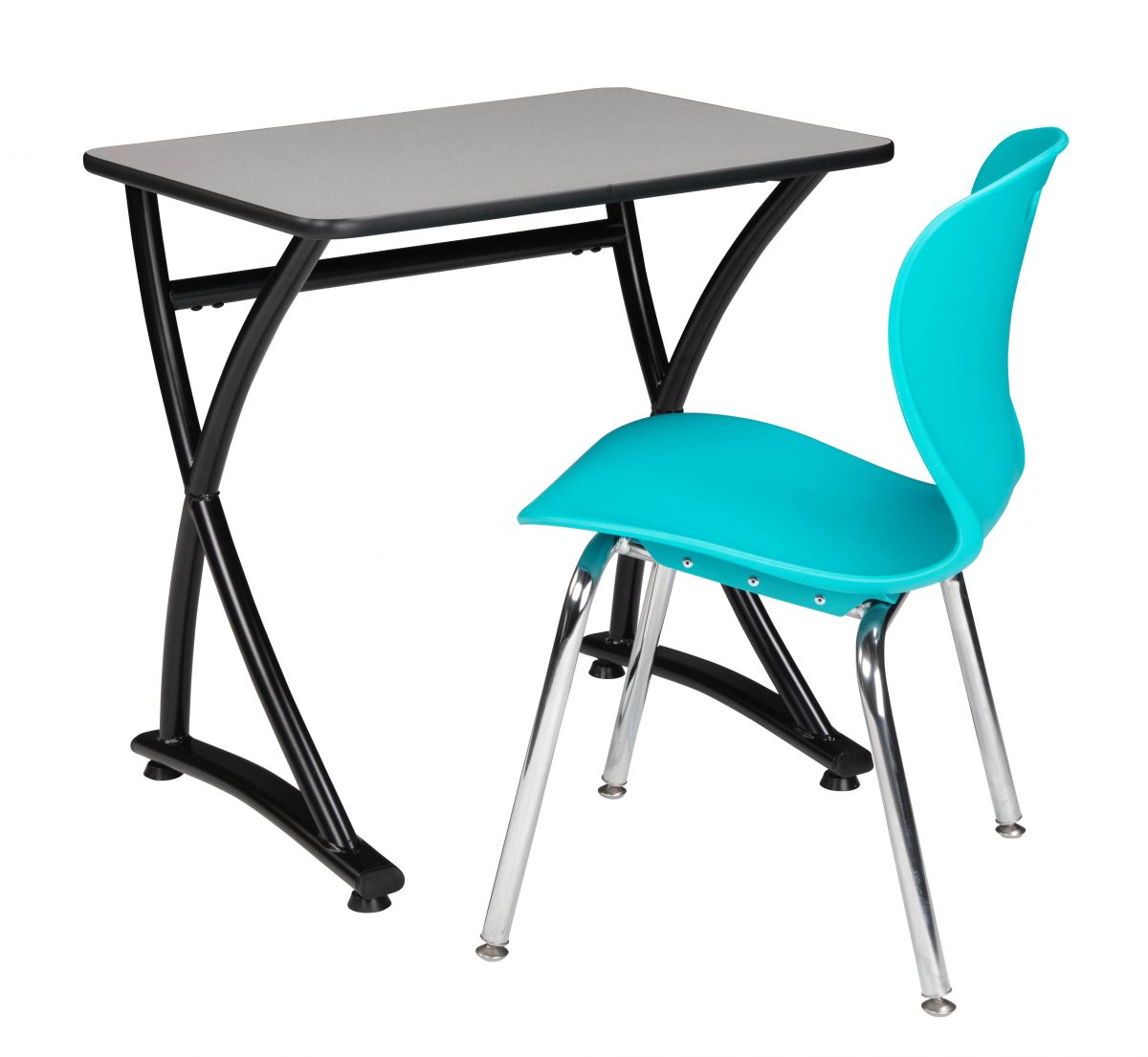

Academia 20230220 229 2726 Mbb Blk Z26
Academia 20230220 225 2726 Mbb Blk
Academia 20230220 309 Carrell Maple V2 F 24 X60

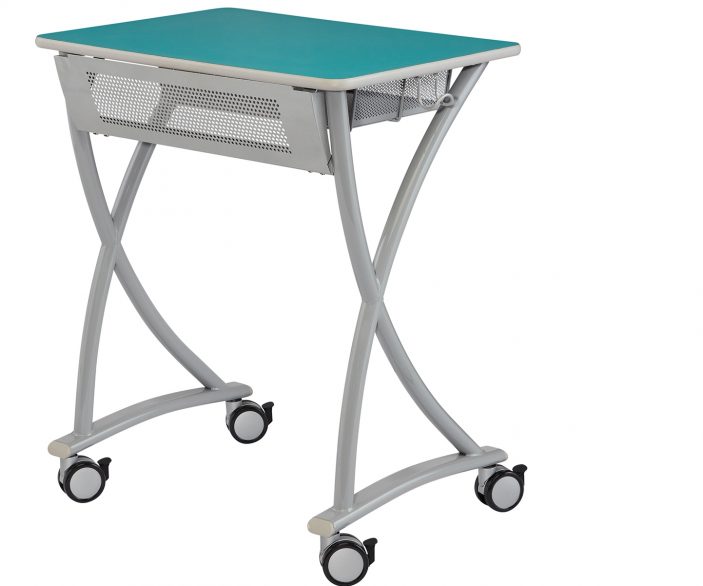

V2 Desk Category Image 2 Rght
Adjustable V2 Desk

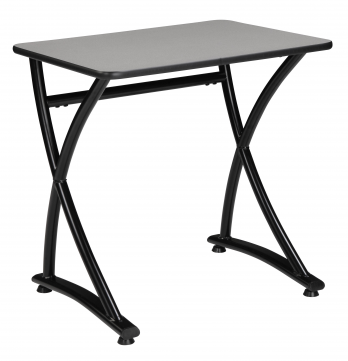

Fixed V2 Desk
V2 Modesty Panel
V2 Desk F4
Traditionally Modern. Style and Strength are always included.
Comfort
The wide frame design gives students extra leg room and the legs are height-adjustable for use in any grade.
Design
The soft interlocking leg supports the dual legs on either side and makes this desk the design of the future.
Benefits
The 500+ square inch desktop of the Illustration V2 desk is designed to give the students plenty of room for their books and their laptop.
Strength
The unitized frame design means that the desk is held together by steel tubing, not by the book-box.
General Specifications
- Model Numbers
- 26-30" V2 Desk w/ Laminate Desktop 2700
- 26-30" V2 Desk w/ Laminate Desktop with Educational Edge 2700EE
- 26-30" V2 Adjustable Desk with High-Pressure Laminate Top and Bookbox 2700WBB
- 26-30" V2 Adjustable Desk with High-Pressure Laminate Top, Educational Edge and Bookbox 2700EEWBB
High Pressure Laminate Desktop: 26"W × 19½"D and 1 1⁄8" thick laminate desktop.
Frame: The double leg design consists of two 11⁄4" diameter tubes that are 16-gauge steel. There is a 1" steel tube, 12-gauge steel, welded at 90 degree angle to both of the legs. This allows for connection of the upper frame to the stretcher bar.
Adjustable Leg Inserts: Consists of two 11⁄8" diameter, 16-gauge steel chrome legs. Each leg is fastened with two 18 x 1⁄2" machine screws. Legs adjust in 1" increments to heights from 27½"- 31½".
Stretcher bar: Steel tube that is 1 1⁄4" in diameter, 18-gauge, that spans from leg to leg.
Glides: Adjustable screw-in nylon glides, matched to frame finish.
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
Assembly Sheets
No Assembly RequiredCut/Sales Sheets
Environmental Certification
Finishes & Options
Accessories
Unitized Desk Hook
9TRI-HOOKBack pack hook for unitized desk
Shipping Information- 9TRI-HOOK: 1 lbs // 1000 per skid
Mesh Bookbox for Illustration V2
9DF17-MBBThis mesh bookbox is 17"W x 12"D x 4.5"H. This bookbox is for the Illustration V2 desk.
Shipping Information- Shipping Class: 70
- 9DF17-MBB: 4 lbs // 300 per skid
V2 Desk Modesty Panel
9DF27-MPAdd a modesty panel for comfort while studying.
Shipping Information- 9DF27-MP: 3 lbs
3" Heavy Duty Soft Locking Casters
99TW75-IL-SOFTSelect these 3" Locking Soft Caster for hard flooring like tile.
Shipping Information- 99TW75-IL-SOFT: 8 lbs // 540 per skid
3" Heavy Duty Hard Locking Casters
99TW75-IL-HARDSelect these 3" Locking Hard Casters for soft flooring like carpet.
Shipping Information- 99TW75-IL-HARD: 8 lbs // 540 per skid
Screw-in Rubber Glide
9GL-TL-TPRThis hight adjustable screw-in glide is compatible is sled base combos, C-Leg, T-Leg and XLT tables.
General Specifications
- Model Numbers
- 26-30" V2 Desk w/ Hard Plastic Desktop 2700HP
- 26-30" V2 Desk w/ Hard Plastic Desktop and Bookbox 2700HPWBB
Desktop: 26"W × 19½"D and 5⁄8" thick hard plastic desktop with molded pencil groove.
Frame: The double leg design consists of two 11⁄4" diameter tubes that are 16-gauge steel. There is a 1" steel tube, 12-gauge steel, welded at 90 degree angle to both of the legs. This allows for connection of the upper frame to the stretcher bar.
Adjustable Leg Inserts: Consists of two 11⁄8" diameter, 16-gauge steel chrome legs. Each leg is fastened with two 18 x 1⁄2" machine screws. Legs adjust in 1" increments to heights from 27½"- 31½".
Stretcher bar: Steel tube that is 1 1⁄4" in diameter, 18-gauge, that spans from leg to leg.
Glides: Adjustable screw-in nylon glides, matched to frame finish.
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
Assembly Sheets
No Assembly RequiredCut/Sales Sheets
Environmental Certification
Finishes & Options
Accessories
Unitized Desk Hook
9TRI-HOOKBack pack hook for unitized desk
Shipping Information- 9TRI-HOOK: 1 lbs // 1000 per skid
Mesh Bookbox for Illustration V2
9DF17-MBBThis mesh bookbox is 17"W x 12"D x 4.5"H. This bookbox is for the Illustration V2 desk.
Shipping Information- Shipping Class: 70
- 9DF17-MBB: 4 lbs // 300 per skid
V2 Desk Modesty Panel
9DF27-MPAdd a modesty panel for comfort while studying.
Shipping Information- 9DF27-MP: 3 lbs
3" Heavy Duty Soft Locking Casters
99TW75-IL-SOFTSelect these 3" Locking Soft Caster for hard flooring like tile.
Shipping Information- 99TW75-IL-SOFT: 8 lbs // 540 per skid
3" Heavy Duty Hard Locking Casters
99TW75-IL-HARDSelect these 3" Locking Hard Casters for soft flooring like carpet.
Shipping Information- 99TW75-IL-HARD: 8 lbs // 540 per skid
Screw-in Rubber Glide
9GL-TL-TPRThis hight adjustable screw-in glide is compatible is sled base combos, C-Leg, T-Leg and XLT tables.
General Specifications
- Model Numbers
- 26-30" V2 Desk w/ Woodstone Desktop 2700WS
- 26-30" V2 Desk w/ Woodstone Desktop and Bookbox 2700WSWBB
Woodstone Desktops: 26"W × 19½"D and 5⁄8" thick woodstone desktop with molded pencil groove.
Frame: The double leg design consists of two 11⁄4" diameter tubes that are 16-gauge steel. There is a 1" steel tube, 12-gauge steel, welded at 90 degree angle to both of the legs. This allows for connection of the upper frame to the stretcher bar.
Adjustable Leg Inserts: Consists of two 11⁄8" diameter, 16-gauge steel chrome legs. Each leg is fastened with two 18 x 1⁄2" machine screws. Legs adjust in 1" increments to heights from 27½"- 31½".
Stretcher bar: Steel tube that is 1 1⁄4" in diameter, 18-gauge, that spans from leg to leg.
Glides: Adjustable screw-in nylon glides, matched to frame finish.
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
Assembly Sheets
No Assembly RequiredCut/Sales Sheets
Environmental Certification
Finishes & Options
Accessories
Unitized Desk Hook
9TRI-HOOKBack pack hook for unitized desk
Shipping Information- 9TRI-HOOK: 1 lbs // 1000 per skid
Mesh Bookbox for Illustration V2
9DF17-MBBThis mesh bookbox is 17"W x 12"D x 4.5"H. This bookbox is for the Illustration V2 desk.
Shipping Information- Shipping Class: 70
- 9DF17-MBB: 4 lbs // 300 per skid
V2 Desk Modesty Panel
9DF27-MPAdd a modesty panel for comfort while studying.
Shipping Information- 9DF27-MP: 3 lbs
3" Heavy Duty Soft Locking Casters
99TW75-IL-SOFTSelect these 3" Locking Soft Caster for hard flooring like tile.
Shipping Information- 99TW75-IL-SOFT: 8 lbs // 540 per skid
3" Heavy Duty Hard Locking Casters
99TW75-IL-HARDSelect these 3" Locking Hard Casters for soft flooring like carpet.
Shipping Information- 99TW75-IL-HARD: 8 lbs // 540 per skid
Screw-in Rubber Glide
9GL-TL-TPRThis hight adjustable screw-in glide is compatible is sled base combos, C-Leg, T-Leg and XLT tables.
General Specifications
- Model Numbers
- 26" V2 Desk w/ Laminate Desktop 2726
- 26" V2 Desk w/ Laminate Desktop with Educational Edge 2726EE

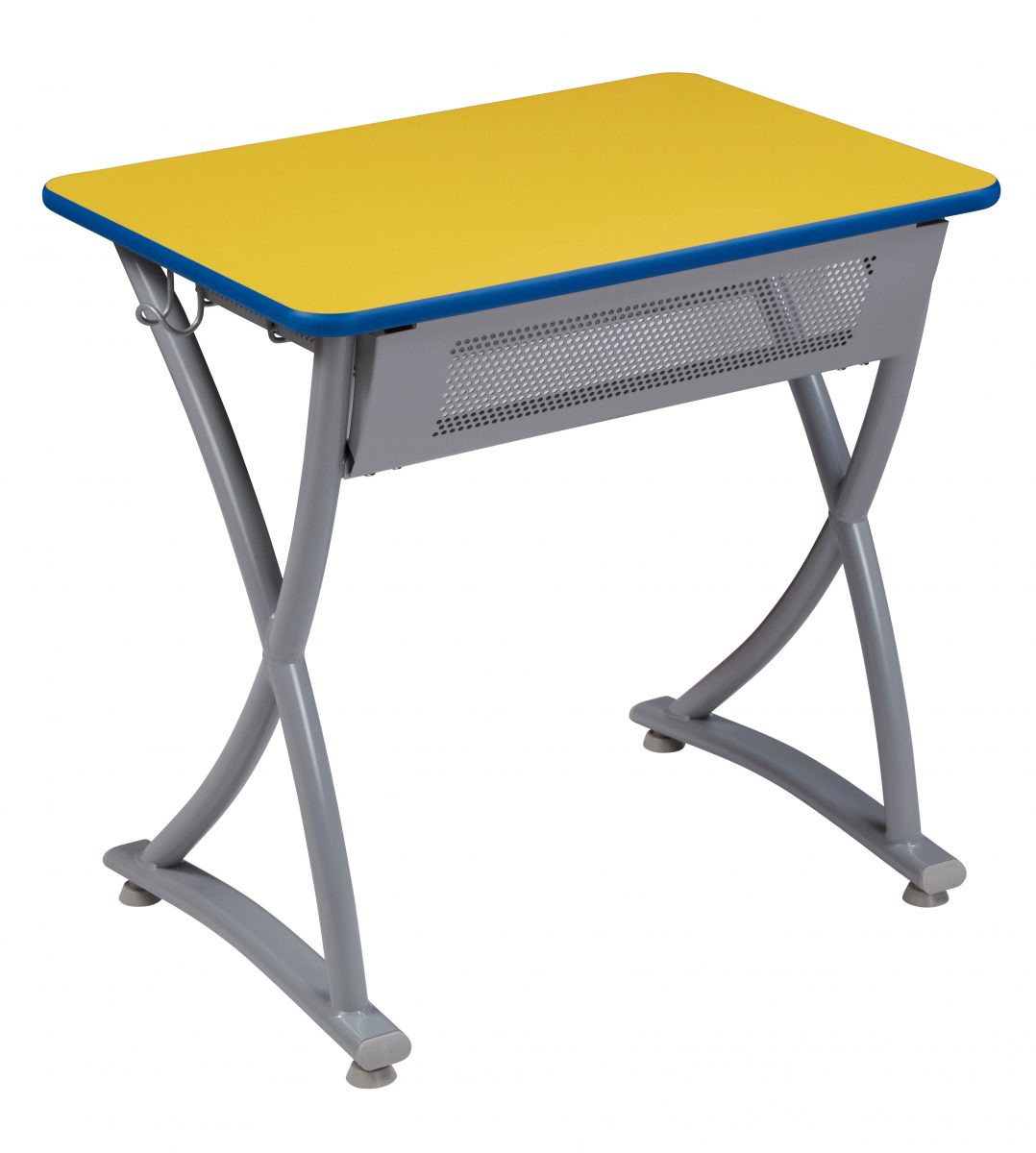

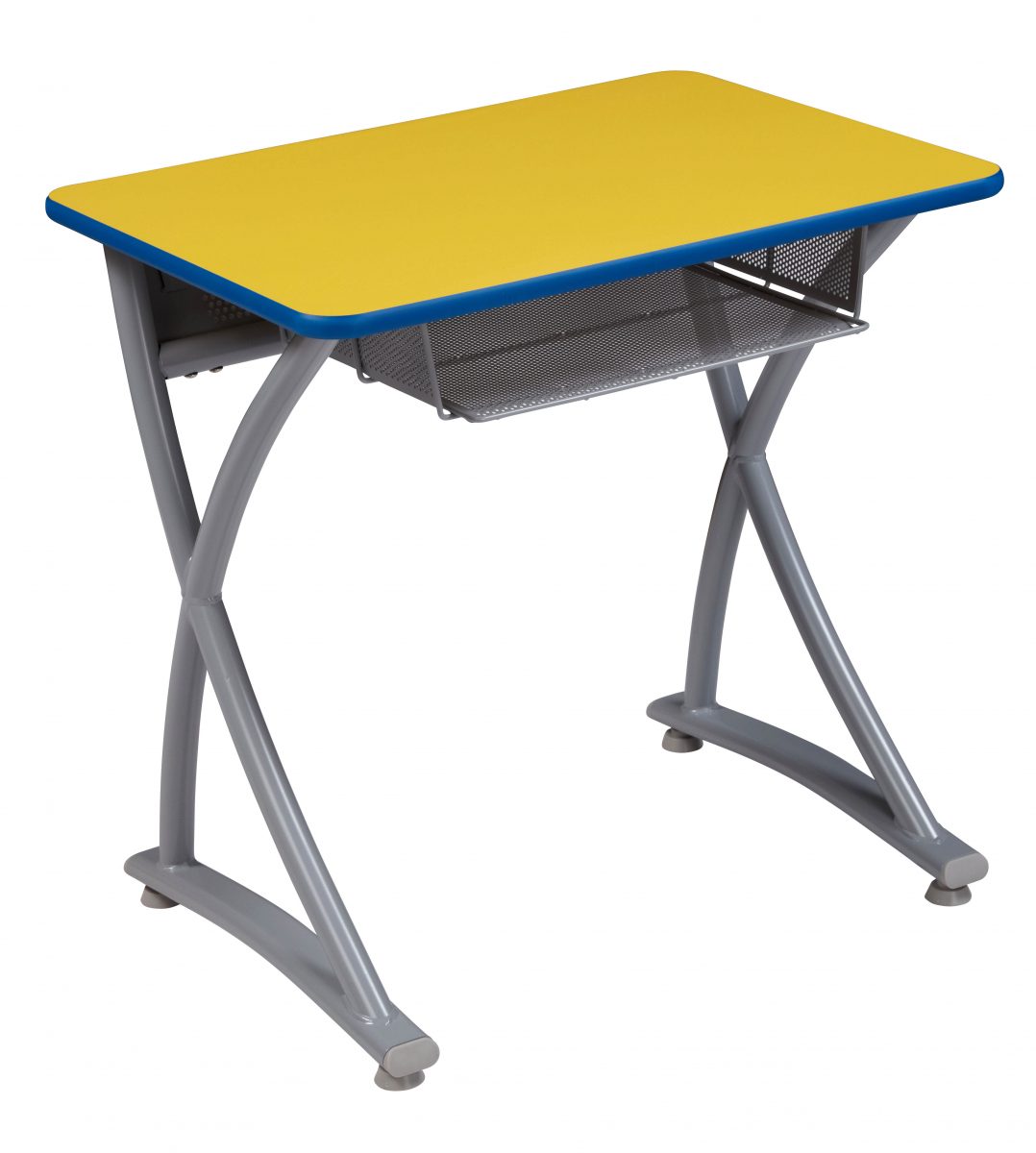

- 26" V2 Desk w/ Laminate DeskTop and Bookbox 2726WBB
- 26" V2 Desk w/ Laminate Desktop with Educational Edge and Bookbox 2726EEWBB
- 29" V2 Desk w/ Laminate Desktop 2729
- 29" V2 Desk w/ Laminate Desktop with Educational Edge 2729EE
- 29" V2 Desk w/ Laminate DeskTop and Bookbox 2729WBB
- 29" V2 Desk w/ Laminate Desktop with Educational Edge and Bookbox 2729EEWBB
Desktop: 26"W × 19½"D and 1 1⁄8" thick laminate desktop and standard PVC edge banding.
Frame: The double leg design consists of two 11⁄4" diameter tubes that are 16-gauge steel. There is a 1" steel tube, 12-gauge steel, welded at 90 degree angle to both of the legs. This allows for connection of the upper frame to the stretcher bar. This desk is fixed at 26" in height.
Stretcher bar: Steel tube that is 1 1⁄4" in diameter, 18-gauge, that spans from leg to leg.
Glides: Adjustable screw-in nylon glides, matched to frame finish.
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
Assembly Sheets
No Assembly RequiredCut/Sales Sheets
Environmental Certification
Finishes & Options
Accessories
Unitized Desk Hook
9TRI-HOOKBack pack hook for unitized desk
Shipping Information- 9TRI-HOOK: 1 lbs // 1000 per skid
Mesh Bookbox for Illustration V2
9DF17-MBBThis mesh bookbox is 17"W x 12"D x 4.5"H. This bookbox is for the Illustration V2 desk.
Shipping Information- Shipping Class: 70
- 9DF17-MBB: 4 lbs // 300 per skid
V2 Desk Modesty Panel
9DF27-MPAdd a modesty panel for comfort while studying.
Shipping Information- 9DF27-MP: 3 lbs
3" Heavy Duty Soft Locking Casters
99TW75-IL-SOFTSelect these 3" Locking Soft Caster for hard flooring like tile.
Shipping Information- 99TW75-IL-SOFT: 8 lbs // 540 per skid
3" Heavy Duty Hard Locking Casters
99TW75-IL-HARDSelect these 3" Locking Hard Casters for soft flooring like carpet.
Shipping Information- 99TW75-IL-HARD: 8 lbs // 540 per skid
Screw-in Rubber Glide
9GL-TL-TPRThis hight adjustable screw-in glide is compatible is sled base combos, C-Leg, T-Leg and XLT tables.
General Specifications
- Model Numbers
- 26" V2 Desk w/ Hard Plastic Desktop 2726HP
- 29" V2 Desk w/ Hard Plastic Desktop 2729HP
- 26" V2 Desk w/ Hard Plastic DeskTop and Bookbox 2726HPWBB

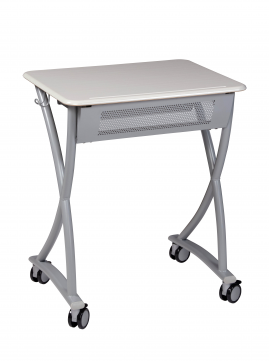

- 29" V2 Desk w/ Hard Plastic DeskTop and Bookbox 2729HPWBB
Hard plastic Desktop: 26"W × 19½"D and 5⁄8" thick hard plastic desktop with molded pencil groove.
Frame: The double leg design consists of two 11⁄4" diameter tubes that are 16-gauge steel. There is a 1" steel tube, 12-gauge steel, welded at 90 degree angle to both of the legs. This allows for connection of the upper frame to the stretcher bar. This desk is available in two fixed options, 26" and 29" in height.
Stretcher bar: Steel tube that is 1 1⁄4" in diameter, 18-gauge, that spans from leg to leg.
Glides: Adjustable screw-in nylon glides, matched to frame finish.
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
Assembly Sheets
No Assembly RequiredCut/Sales Sheets
Environmental Certification
Finishes & Options
Accessories
Unitized Desk Hook
9TRI-HOOKBack pack hook for unitized desk
Shipping Information- 9TRI-HOOK: 1 lbs // 1000 per skid
Mesh Bookbox for Illustration V2
9DF17-MBBThis mesh bookbox is 17"W x 12"D x 4.5"H. This bookbox is for the Illustration V2 desk.
Shipping Information- Shipping Class: 70
- 9DF17-MBB: 4 lbs // 300 per skid
V2 Desk Modesty Panel
9DF27-MPAdd a modesty panel for comfort while studying.
Shipping Information- 9DF27-MP: 3 lbs
3" Heavy Duty Soft Locking Casters
99TW75-IL-SOFTSelect these 3" Locking Soft Caster for hard flooring like tile.
Shipping Information- 99TW75-IL-SOFT: 8 lbs // 540 per skid
3" Heavy Duty Hard Locking Casters
99TW75-IL-HARDSelect these 3" Locking Hard Casters for soft flooring like carpet.
Shipping Information- 99TW75-IL-HARD: 8 lbs // 540 per skid
Screw-in Rubber Glide
9GL-TL-TPRThis hight adjustable screw-in glide is compatible is sled base combos, C-Leg, T-Leg and XLT tables.
General Specifications
- Model Numbers
- 26" V2 Desk w/ Woodstone Desktop 2726WS
- 29" V2 Desk w/ Woodstone Desktop 2729WS
- 26" V2 Desk w/ Woodstone DeskTop and Bookbox 2726WSWBB
- 29" V2 Desk w/ Woodstone DeskTop and Bookbox 2729WSWBB
Desktop: 26"W × 19½"D and 5⁄8" thick woodstone desktop with molded pencil groove.
Frame: The double leg design consists of two 11⁄4" diameter tubes that are 16-gauge steel. There is a 1" steel tube, 12-gauge steel, welded at 90 degree angle to both of the legs. This allows for connection of the upper frame to the stretcher bar. This desk is fixed at 26" in height.
Stretcher bar: Steel tube that is 1 1⁄4" in diameter, 18-gauge, that spans from leg to leg.
Glides: Adjustable screw-in nylon glides, matched to frame finish.
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
You must be logged in to view this content
Log in to gain access to product information, images, specification sheets, CAD files and much more.
Don't have an account? Register Now
Assembly Sheets
No Assembly RequiredCut/Sales Sheets
Environmental Certification
Finishes & Options
Accessories
Unitized Desk Hook
9TRI-HOOKBack pack hook for unitized desk
Shipping Information- 9TRI-HOOK: 1 lbs // 1000 per skid
Mesh Bookbox for Illustration V2
9DF17-MBBThis mesh bookbox is 17"W x 12"D x 4.5"H. This bookbox is for the Illustration V2 desk.
Shipping Information- Shipping Class: 70
- 9DF17-MBB: 4 lbs // 300 per skid
V2 Desk Modesty Panel
9DF27-MPAdd a modesty panel for comfort while studying.
Shipping Information- 9DF27-MP: 3 lbs
3" Heavy Duty Soft Locking Casters
99TW75-IL-SOFTSelect these 3" Locking Soft Caster for hard flooring like tile.
Shipping Information- 99TW75-IL-SOFT: 8 lbs // 540 per skid
3" Heavy Duty Hard Locking Casters
99TW75-IL-HARDSelect these 3" Locking Hard Casters for soft flooring like carpet.
Shipping Information- 99TW75-IL-HARD: 8 lbs // 540 per skid
Screw-in Rubber Glide
9GL-TL-TPRThis hight adjustable screw-in glide is compatible is sled base combos, C-Leg, T-Leg and XLT tables.
Related Products
Chat with Academia
Can’t find what you are looking for? Contact us - we are always here to help.
Get In Touch
